Yottamaster Y-Focus 4 Bay External Hard Drive Enclosure
I was looking for an external enclosure to hold a couple of disks to use in a ZFS pool, so I bought the Yottamaster Y-Focus 4 Bay External Hard Drive Enclosure. Here are my experiences with it.
There are three variants of this hardware.
- The "NO RAID USB3.0" (FS4Ue)
a USB 5Gbps port in front of a JMS578 USB-to-SATA bridge controller + a JMB575 port multiplier;
- I would avoid this one because I frown on port multipliers
- The "RAID USB 3.0" (FS4RU3)
a USB 5 Gbps port in front of a JMS587 + a JMB394 RAID port multiplier;
- I would avoid this one because I frown on cheap RAID controllers
- The "Daisy Chain TYPE-C(No Raid)" (FS4C3)
a USB 10 Gbps port in front of a VL822 USB hub controller + one VL715 USB to SATA bridge controller per drive;
- this is the one I bought!
Hardware

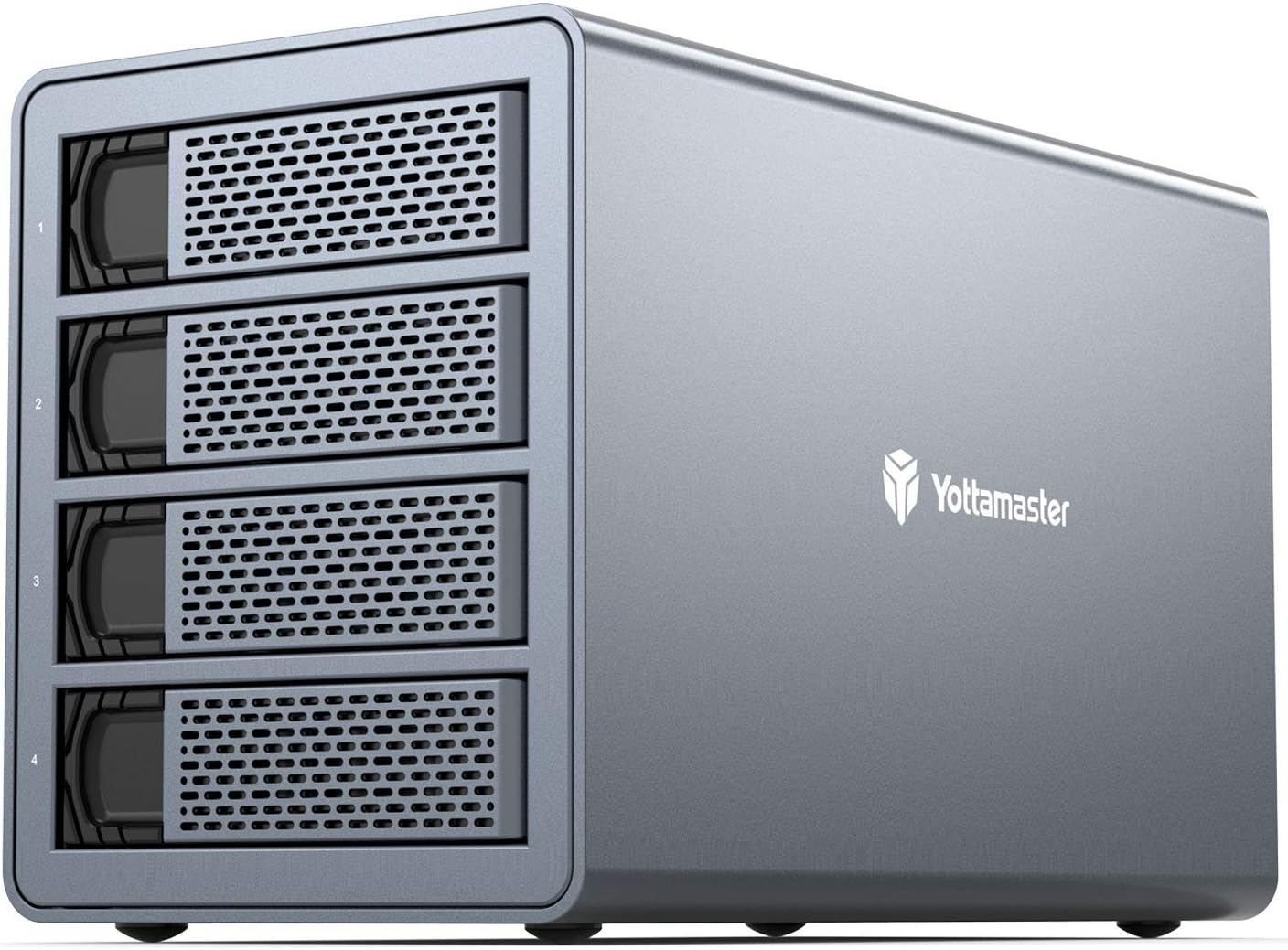

It's decent, feels reasonably solid.
There's an LED that lights up blue for each populated bay. This is very dim, and hard to see unless you're up close & looking directly at the enclosure.
The fan is quiet & keeps the drives cool.

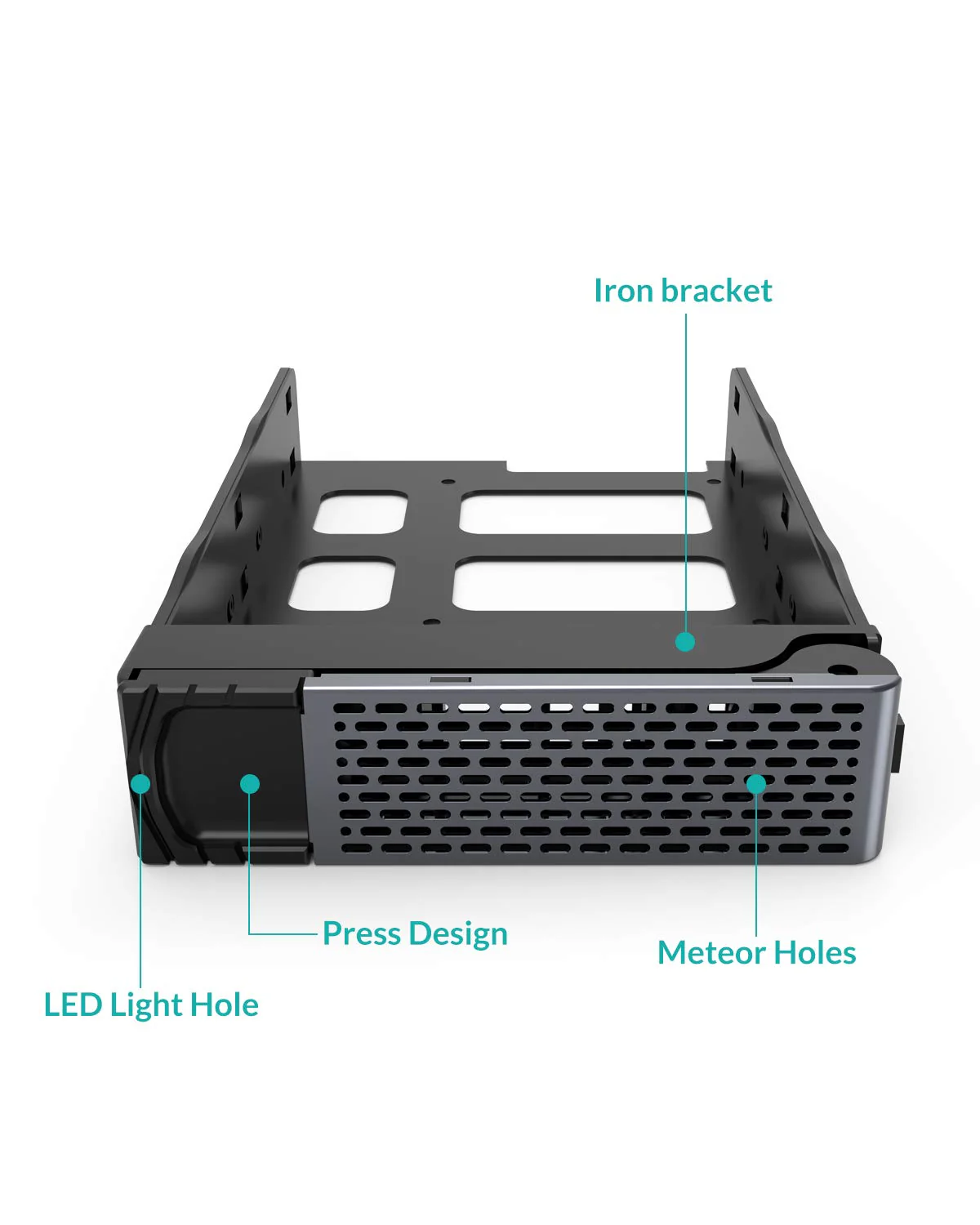

The sleds are also reasonably solid. Drives are screwed in, and screws & a screwdriver are provided. You could put a small sticker on the non-vented part of the front of the sled if you wanted to have an externally-visible identifier. Sleds can be bought separately & are common across many different Yottamaster enclosures.
Block diagram
Performance & Reliability
Before putting it into service I did some benchmarking with two disks, and I found I could read and write at the disks' maximum speeds simultaneously.
It's now been in service for many months, using two of the bays for a mirror vdev within a ZFS pool and it's worked perfectly.
Obviously it uses a USB type C connector, so one has to be careful to avoid accidental disconnections!
USB topology
It shows up as a USB hub (2-1):
$ lsusb.py
usb2 1d6b:0003 09 1IF [USB 3.10, 10000 Mbps, 0mA] (xhci-hcd 0000:00:14.0) hub
2-1 2109:0822 09 1IF [USB 3.20, 10000 Mbps, 0mA] (VIA Labs, Inc. USB3.1 Hub 000000001) hub
2-1.1 174c:55aa 00 1IF [USB 3.00, 5000 Mbps, 0mA] (ULT-Best Best USB Device 0419111457B0)
2-1.3 2109:0822 09 1IF [USB 3.20, 10000 Mbps, 0mA] (VIA Labs, Inc. USB3.1 Hub 000000001) hub
2-1.3.2 2109:0715 00 1IF [USB 3.10, 10000 Mbps, 8mA] (VLI Manufacture String VLI Product String 000000123AE8)
2-1.3.4 2109:0715 00 1IF [USB 3.10, 10000 Mbps, 8mA] (VLI Manufacture String VLI Product String 000000123AE8)The hub has two downstream ports.
Port 1 is the "HUB" connector on the rear.
- I connected my "Best USB Device" for demonstration.
Port 3 is a second, internal USB hub.
- This hub has four downstream ports, to which the SATA bridge controllers are attached.
lsusb.py only shows the iManufacturer and iProduct strings from the USB device descriptor, which are sadly nonsense.
Looking up up the idVendor and idProduct numbers we get VIA Labs, Inc. and VL817 SATA Adaptor respectively. Apparently this too is wrong.
According to smartmontools' drive database, it's the correct product ID for the VL715 USB to SATA bridge controller.
All four bridges have the same iSerial string. This is not a problem in and of itself, but this will come back to haunt us below...
Storage topology
It's UASP.
The USB/SATA controller munges the disk's ATA model number string into the SCSI vendor and product strings, truncating it in the process. The ATA firmware version string gets munged into the SCSI revision string, also truncated.
$ lsscsi [...] [10:0:0:0] disk WDC WD16 1KFGX-68CMAN 83.0 /dev/sdg [11:0:0:0] disk WDC WD16 1KFGX-68CMAN 83.0 /dev/sdi
We can match up the kernel device names to USB bus/port topology/interface if we enable the output of transport information:
$ lsscsi -t [10:0:0:0] disk usb:2-1.3.2:1.0 /dev/sdg [11:0:0:0] disk usb:2-1.3.4:1.0 /dev/sdi
But we don't want to use unstable device names, we need stable identifiers. Let's see what symlinks have been formed for each device:
$ parallel -r --tag 'udevadm info {} | grep ^S: | sort' ::: /dev/sd{g,i}
/dev/sdg S: disk/by-diskseq/7
/dev/sdg S: disk/by-id/scsi-35000cca012345678
/dev/sdg S: disk/by-id/scsi-SWDC_WD16_1KFGX-68CMAN_000000123AE8
/dev/sdg S: disk/by-id/usb-WDC_WD16_1KFGX-68CMAN_000000123AE8-0:0
/dev/sdg S: disk/by-path/pci-0000:00:14.0-usb-0:1.3.2:1.0-scsi-0:0:0:0
/dev/sdi S: disk/by-diskseq/9
/dev/sdi S: disk/by-id/scsi-35000cca9abcdef01
/dev/sdi S: disk/by-id/scsi-SWDC_WD16_1KFGX-68CMAN_000000123AE8
/dev/sdi S: disk/by-id/usb-WDC_WD16_1KFGX-68CMAN_000000123AE8-0:0
/dev/sdi S: disk/by-path/pci-0000:00:14.0-usb-0:1.3.4:1.0-scsi-0:0:0:0Uh oh... the usual by-id/usb-$env{ID_USB_SERIAL} and by-id/scsi-S$env{SCSI_VENDOR}_$env{SCSI_MODEL}_$env{SCSI_IDENT_SERIAL} symlinks have the same value for both disks!
- This is because, while the SCSI vendor/product/revision values are taken from the disk attached to the SATA bridge controller, the serial number is not read from the disk; it's taken from the SATA bridge controller itself!
Fortunately there are other options.
the by-path/* symlink is stable, at least as long as the enclosure is plugged into the same USB host controller (and the PCI bus toplogy doesn't change for whatever reason!)
the by-id/scsi-3$env{SCSI_IDENT_LUN_NAA_REG} symlink is based off the disk's WWN which is also stable.
The SCSI identifier can be displayed by lsscsi:
$ lsscsi --wwn -i [10:0:0:0] disk WDC WD16 1KFGX-68CMAN 83.0 0x5000cca012345678 /dev/sdg 35000cca012345678 [11:0:0:0] disk WDC WD16 1KFGX-68CMAN 83.0 0x5000cca9abcdef01 /dev/sdi 35000cca9abcdef01
It seems the first digit, 0x3, indicates that the identifier is "NAA based" (i.e., based off a WWN in NAA format). Then the WWN follows, so the next digit, 0x5 indicates the WWN is in NAA format. The next six digits are the vendor OUI; 00:0c:ca is "HGST A Western Digital Company". The final nine digits are the vendor-assigned identifier, unique to each disk.
So we can use the by-path/* symlinks to persistently reference a disk by its position in the storage toplogy; or the by-id/scsi-3* symlinks to reference a disk by its internal persistent identifer, respectively.
SATA Passthrough
hdparm works fine.
smartctl also works.
It recognizes the VL715 USB to SATA bridge controller and automatically acts as if -d sat was on the command line.
This includes the -l scterc option to view/set the SCT Error Recovery Control value which is really important for reliable error handling when using a multi-device filesystem such as ZFS!
Disk sleep timer
The only niggle I have with this enclosure is that it does want to spin disks down if they're not accessed for a few minutes. Yottamaster provide a Windows utility that reprograms the enclosure's EEPROM to disable the sleep timer, but I am not using Windows.
There's a hacky but simple and reliable workaround; assuming a filesystem is mounted at /srv/data then keep-awake@srv-data.service will write some data to the disk every few minutes, preventing it from going to sleep:
$ systemctl cat keep-awake@srv-data.service # /etc/systemd/system/keep-awake@.service [Unit] Description=Keep disks backing /%I awake ConditionPathIsMountPoint=/%I RequiresMountsFor=/%I [Service] Type=exec ExecStart=/bin/bash -c 'set -eEuo pipefail; while true; do if mountpoint -q /%I; then dd if=/dev/zero bs=16 count=1 of=/%I/.keep-awake oflag=sync status=none; fi; sleep $((300 + ((RANDOM-16383) >> 8))); done' [Install] WantedBy=multi-user.target
Conclusion
Overall, I'm pleasantly surprised.
- It's reliable
- It performs fine
- It cools fine
- It's quiet
- It looks nice
- Be careful to avoid device identifiers that use the disk's serial number
- You'll want to prevent your disks from going to sleep all the time.
